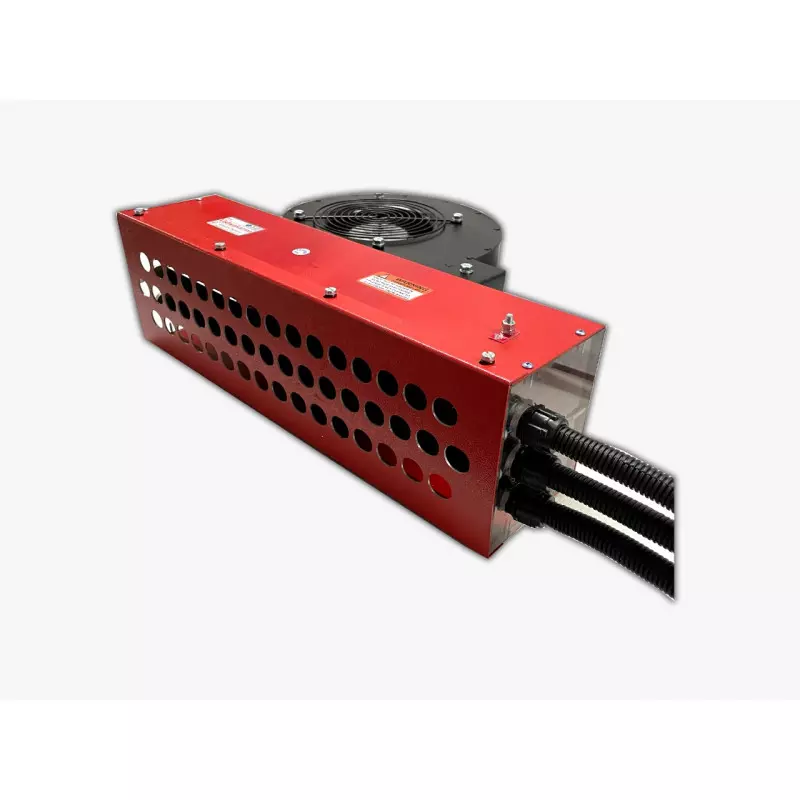

Air Ionizing Blower Electrode

VECONTROL Air Ionizing Blower Electrode is an ionising System, Fans used to blow ionised air on any 3D/2D object on which static is to be neutralised. it consists of a fan. Ambient air is drawn from either side of the blower and blown over the static eliminating bars, provided at the outlet. this results in an ionised air flow that effectively eliminates static over a wide range. Under ideal conditions, the target can be as far as 300mm - 500mm. . VECONTROL power sources are designed to provide high voltage AC supply to VECONTROL Air Ionizing Blower Electrode. They give stable high voltage output even inder severe conditions

Specification

• Input Power: From VECONTROL Power Pack
• Dimension : 150 mm x 150 mm
• Weight : Approx 2 kg in 450 mm length
• Cable : 2.5 mtr (Custom Made lengths possible)
• Fabricated : Aluminium

Features

• Ionizing with Blower Air Supply
• Optional : Shock less or Standard
• Discharge with Air Supply range of 500 mm & more based on application parameters
• Suitable for High speed up to 300 mtr/min
• Stable Hv output, with in-built current limit
• 2.5metres interconnecting cables. Custom made lengths possible
• Powder Coated, Aluminium fabricated

Benefits

• CE Certified
• Resistant Against fire in shockless
• Noise levelless
• Easy installation,commissioning
• Can eliminate static from 2D and 3D objects
• Compact,rugged,dust proof, powder coated construction, fabricated of aluminium
• Provides stable high voltage output even under severe operating conditions

Application

• Polyethylene foam sheet making machine (EPE/PE)
• Textiles industries
• Printing Machine
• Pharma Ind
